名稱：WF661D型對夾式-無靠背氣動蝶閥

詳細信息

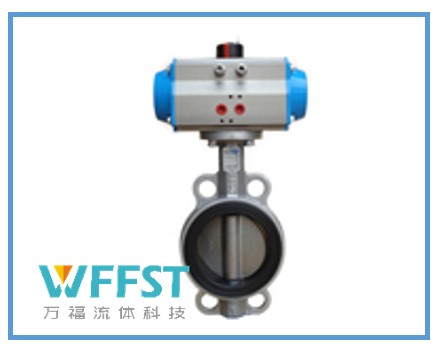

WF661D型對夾式-無靠背氣動蝶閥

注：表格中每隔兩個數值分別表示PN10和PN16兩種壓力下的參數值。
Note:The table at the two values that were PN10 and PN16 under the pressure of the two parameters.

名稱Name	材料Materials
閥體Body	灰鑄鐵、球墨鑄鐵Cast Iron,Ductile Iron
閥板Disc	球鐵尼龍、球鐵電鍍、304不銹鋼、316不銹鋼、316L不銹鋼、雙相不銹鋼、鋁青銅Ductile Iron Coated by Nylon,Ductile Iron Coated by Nickel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L,Duplex Stainless Steel,Aluminum Bronze
閥座Seat	三元乙丙、丁腈、耐磨乙丙、耐溫乙丙、氟橡膠、硅橡膠EPDM,NBR,Wear-resistant EPDM,High-temperature EPDM,Fluorine Rubber,Silicon Rubber
閥軸Stem	45#碳鋼、304不銹鋼、316不銹鋼、416不銹鋼Carbon Steel 45#，Stainless Steel 304，Stainless Steel 316，Stainless Steel 416
產品型號Products Model	WF661L/D67A1X-10/16
公稱通徑Normal Diameter	DN50-DN300
公稱壓力(Mpa)Normal Diameter	PN1.0-1.6MPa
適用介質Applicable medium	水、海水、污水、油、空氣、食品、弱酸堿等Water,Sea Water,Sewage,Oil,Air,Food,Weak acid and soda etc.
適用溫度Applicable temperature	-10～110℃

氣動對夾式蝶閥、WF661D型對夾式-無靠背氣動蝶閥
